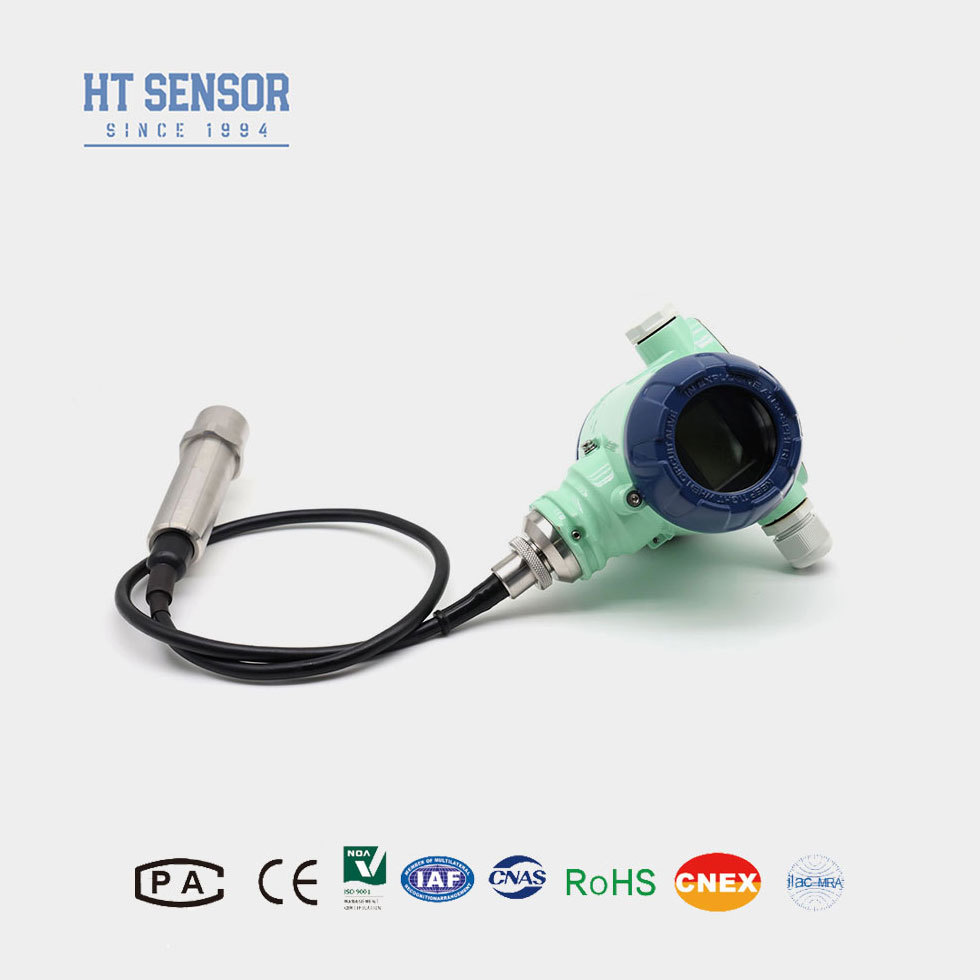

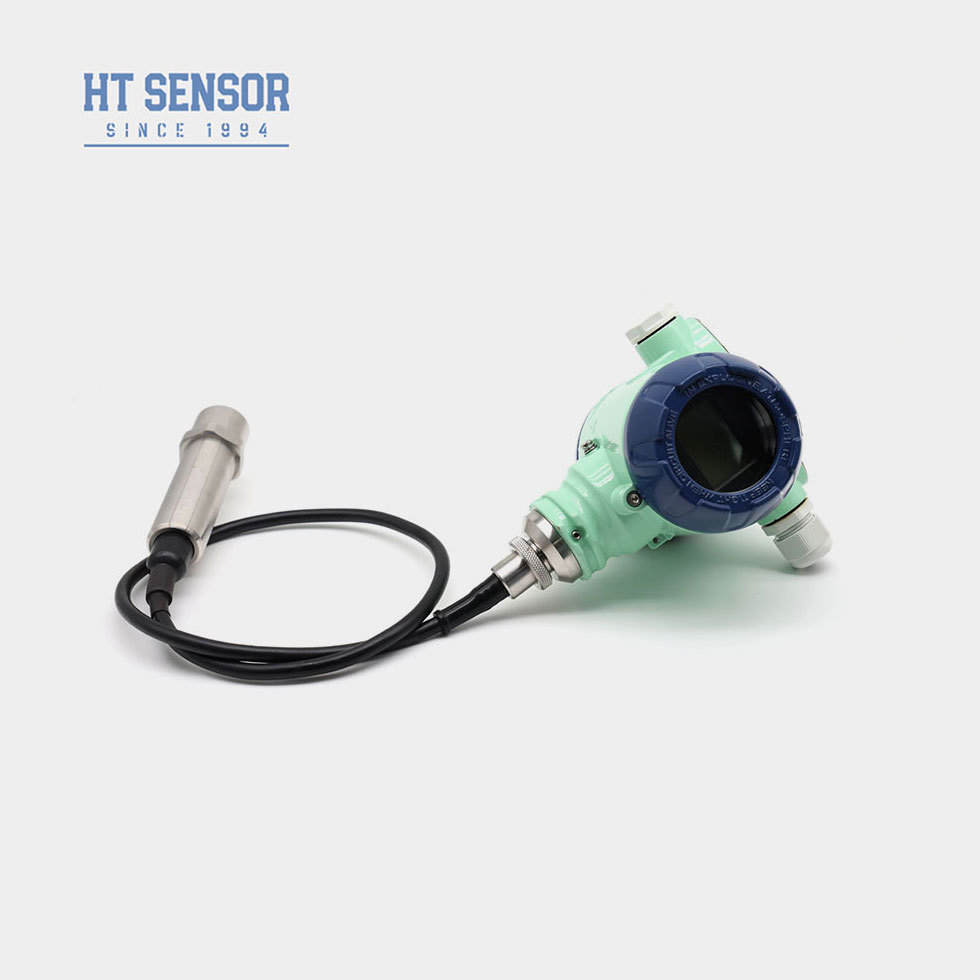

BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| Модель №: | BH93420-III | Диапазон давления: | 0-1m-400 mH2O |
|---|---|---|---|
| Дисплей тип: | ВЕЛ | Точность: | 0.1%,00,25% |
| IP -рейтинг: | IP68 | Вес нетто: | 1,6 кг |
| Материал диафрагмы: | 316L нержавеющая сталь | Диапазон измерений: | 0 ~ 10M… 400MH2O |
| Тип давления: | Измерительное давление, абсолютное давление, герметическое давление | Перегрузка: | ≤ 2 -кратный рейтинг |
| Точность @ 25ºC: | ± 0,1% (тип.) ± 0,2% (макс.) | Рабочая температура: | -20~80oC |
| Температура хранения: | -30 ~ 100ºC | Жилищный материал: | Литой алюминий, нержавеющая сталь 1cr18ni9ti |
| Выходной сигнал: | 4 ~ 20mA с HART | ||
| Выделить |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description
The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
